Rural greenfield FTTH design for a 500-location BEAD service area

A regional electric cooperative and broadband provider preparing a rural fiber subgrant build across Southern Missouri small-town edge and rural road corridors.

Rural greenfield FTTH design for a 500-location BEAD service area
Input received
FCC Fabric location IDs and the approved in-scope list, road/parcel/municipal GIS layers, a pole inventory with owner and coordinates, existing transport handoff constraints, aerial imagery and the client's unit-cost library.
Delivered
A construction-oriented XGS-PON package: HLD/LLD, GIS geodatabase and KMZ, cable schematic and splice diagrams, splitter/terminal schedules, route-segment BOM, and a permit-jurisdiction and QA register.
Timeline
22 business days from approved input freeze to final design issue.

A two-stage 1:32 split architecture assigns all 500 approved locations to complete XGS-PON paths across 512 terminal ports. Route optimization reduces the seed alignment from 35.7 to 33.0 miles, a 7.6% reduction, while the modeled planning cost falls from $9,460 to $8,940 per passing and the worst modeled path retains 4.74 dB of N2 optical margin.

Premises passed
500
Route designed
33.0 mi
Worst-path margin
4.74 dB
Modeled cost/passing
$8,940

The engineering problem

The service area covers low-density communities, farms and roadside clusters separated by long transport segments. The demand layer contains duplicate coordinates, unit-address gaps and locations positioned at parcel centroids rather than likely service entrances. Pole data is incomplete outside the main roads, and several proposed segments cross state highways, streams or railroad-adjacent property. The design begins with a frozen location list, not a route sketch: every approved Fabric location is assigned to one FDT port, one secondary splitter, one primary splitter output, one OLT port and one construction phase, and that chain is carried through the GIS, splice schedule, optical workbook and BOM.

Design parameters and first-principles checks

Approved service locations500 unique location IDs; unit exceptions resolved before zoning
Access technologyXGS-PON; 16 active OLT PON ports
Split architecture16 × 1:4 primary modules at FDH-01; 64 × 1:8 secondary splitters at FDTs; total split 1:32
Subscriber capacity512 terminal ports; 500 assigned; 12 available
Feeder8.4 route miles; 24F minimum planning cable; 16 assigned fibers + 8 spare
DistributionFour 24F legs totaling 24.6 route miles; 16 assigned + 8 spare fibers per leg
Drop basis500 × 320 ft average = 160,000 ft / 30.3 cable miles
Civil mix82% aerial; 18% underground; 32 underground access/pull points
Worst optical path18.6 km; 26.26 dB modeled loss against 31.00 dB N2 budget; 4.74 dB margin

Key design decisions

Two-stage splitting is used because demand is dispersed along long rural roads; secondary splitters shorten drop tails and avoid concentrating every connection at one cabinet. A 24F feeder minimum is retained even though only 16 fibers are active, giving a transparent 33% cable-level reserve without inflating the route to a 144F cable. Terminal capacity is limited to 512 ports for 500 approved locations so spare capacity is visible rather than created by assigning unapproved locations. Pole-owner, highway, water-crossing and private-access dependencies are kept in a permit matrix so an unresolved approval never appears as a complete construction release.

Distribution-leg allocation

Leg24F assignmentFDT rangeAssigned premisesPort capacityRoute miMax path
AF01-F16 active; F17-F24 spareFDT-001 to 0161261286.416.2 km
BF01-F16 active; F17-F24 spareFDT-017 to 0321241285.818.6 km
CF01-F16 active; F17-F24 spareFDT-033 to 0481251286.217.1 km
DF01-F16 active; F17-F24 spareFDT-049 to 0641251286.215.7 km
TOTAL64 active outputs64 FDTs50051224.618.6 km

Core procurement schedule

ItemPlanning quantityBasis / control
FDH cabinet1288F enclosure capacity; accepts 16 primary 1:4 modules and planned reserve
1:4 splitter module16One per active OLT port; four distribution outputs each
1:8 FDT64512 hardened ports; two to four spare terminal ports retained per leg
24F feeder cable44,352 ft8.4 mi GIS centerline basis; slack/waste added as a separate client factor
24F distribution cable129,888 ftFour leg schedules totaling 24.6 mi
Drop cable160,000 ft500 × 320 ft average planning allowance
Underground access points32Handholes/pull points from underground segment and pulling-section schedule

QA steps and evidence

QA gateAcceptance testEvidence / result
Location control500 unique approved IDs; each linked to one terminal portLocation-to-port crosswalk; zero duplicates or unassigned locations
TopologyForward and reverse trace from OLT to premise16 PON paths, 64 secondary branches, 500 complete premise traces
CapacityAssigned fibers and ports do not exceed schedule512 ports / 500 assigned; 24F leg reserve visible
OpticalWorst path checked with approved loss library26.26 dB loss; 4.74 dB N2 margin
QuantityGIS lengths reconcile to cable and structure schedules33.0 route mi; separate 30.3 drop-cable mi
ReleaseEvery redline closed or assigned to an exception owner30%, 90% and final issue checklists

Revision record

RevisionTriggerChange madeControlled outcome
R030% client reviewMoved six FDT boundaries and rebalanced 27 premise assignmentsNo new PON ports; all four legs remain within 128-port capacity
R190% permit and pole screenRerouted 2.7 mi from the seed concept and shifted four access pointsRoute reduced to 33.0 mi; affected sheets, GIS, cable schedule and BOM reissued together

Result and calculation trail

The design assigns all 500 approved locations to complete XGS-PON paths, provides 512 terminal ports and retains 12 unassigned terminal ports. Route optimization reduces the seed alignment from 35.7 to 33.0 miles, a 7.6% reduction, while the planning estimate moves from $9,460 to $8,940 per passing and the worst modeled path retains 4.74 dB of N2 optical margin.

Coverage: 500 assigned ÷ 500 approved = 100% of the representative approved location list. Route reduction: 35.7 seed miles − 33.0 final miles = 2.7 miles, or 7.6%. Capacity: 16 PON ports × 4 primary outputs × 8 secondary ports = 512 premise ports. Cost per passing: $4.47 million representative planning total ÷ 500 locations = $8,940.

Pathworks converted an approved 500-location demand layer and rural road/pole base into a coordinated XGS-PON construction package: serving zones, HLD/LLD, route classification, fiber assignments, splice logic, optical checks, quantities and issue-controlled construction prints, in 22 business days from approved input freeze to final design issue.

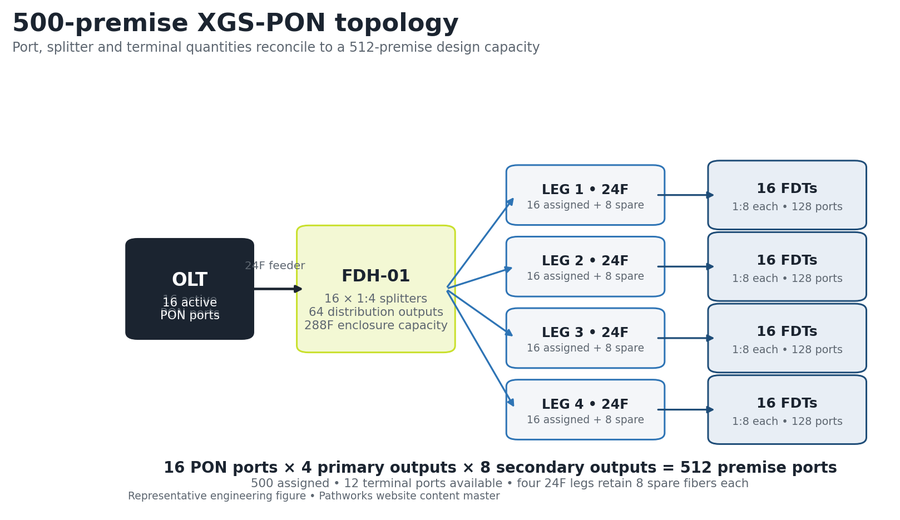

500-premise XGS-PON topology from OLT through FDH to 64 FDTs
Reconciled XGS-PON topology: sixteen OLT ports feed sixteen primary one-to-four splitters, four 24-fiber distribution legs and sixty-four one-to-eight terminals, providing 512 terminal ports for 500 premises.

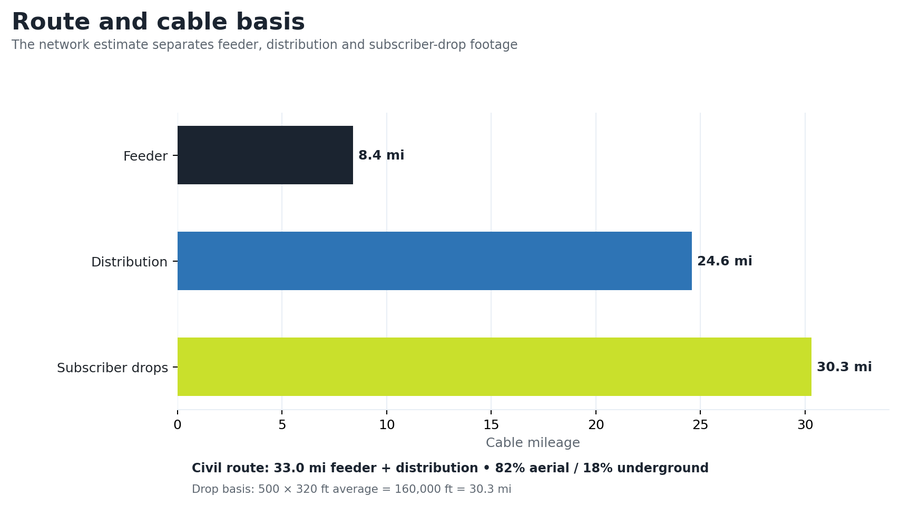

Route and cable basis by feeder, distribution and drop segment
Route and cable basis: feeder, distribution and subscriber-drop mileage are stated separately so construction quantities cannot be confused with route mileage.

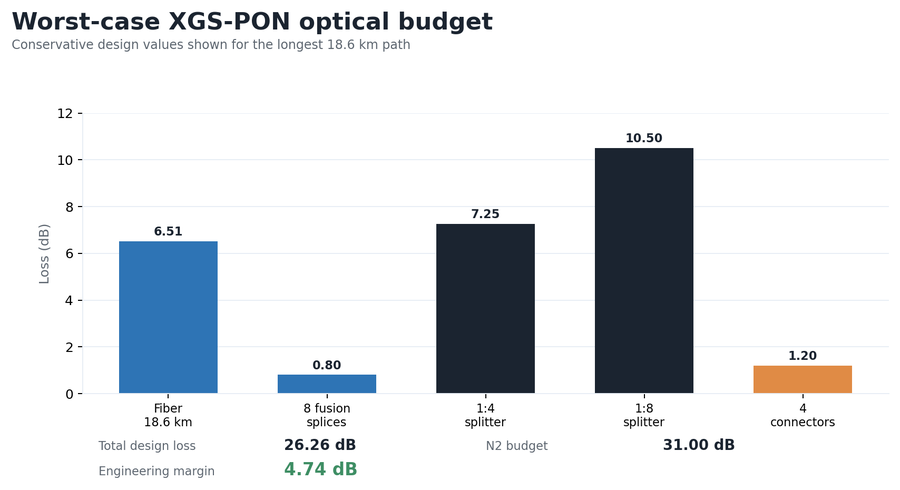

Worst-case XGS-PON optical budget chart
Worst-case XGS-PON optical budget: the longest 18.6 kilometer path has 26.26 dB of modeled loss against a 31 dB N2 budget, leaving 4.74 dB of margin.

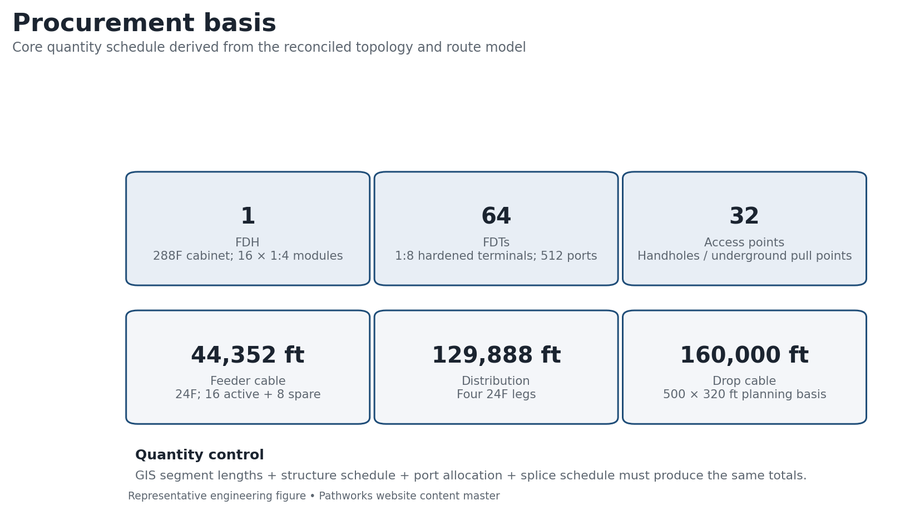

Procurement basis derived from topology, route and drop assumptions
Procurement basis: the core bill of materials is derived from topology, route, structure and drop assumptions rather than rounded headline mileage.
